EDA of FIFA 2019 using Word Cloud

#word #cloud #machine #learning

Kishan Menaria Sept 21 2020 · 5 min read
Share this

#Importing Librarires
import numpy as np
import pandas as pd
import os
import warnings
warnings.filterwarnings('ignore')
import seaborn as sns
import matplotlib.pyplot as plt
%matplotlib inline # for showing the figures in the Notebook itself

# We dont Probably need the Gridlines. Do we? If yes comment this line
sns.set(style="ticks")

flatui = ["#9b59b6", "#3498db", "#95a5a6", "#e74c3c", "#34495e", "#2ecc71"] # defining the colour palette
flatui = sns.color_palette(flatui)
UsageError: unrecognized arguments: # for showing the figures in the Notebook itself
from wordcloud import WordCloud  # importing the worldcloud module. Wordcloud uses the text sizes to represent the frequency of the text
df=pd.read_csv("FIFA_data.csv") # reading the dataset

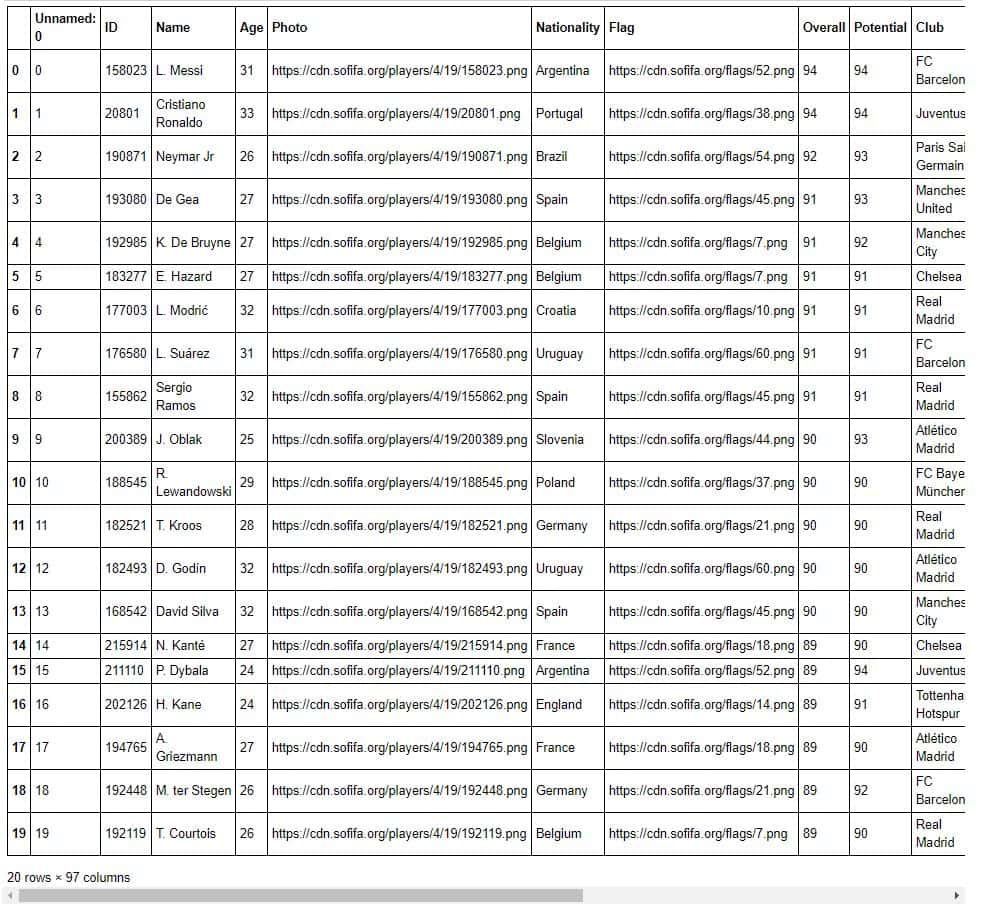

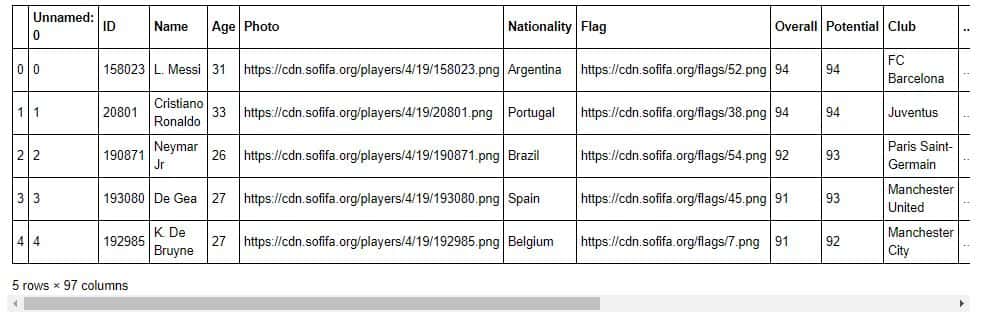

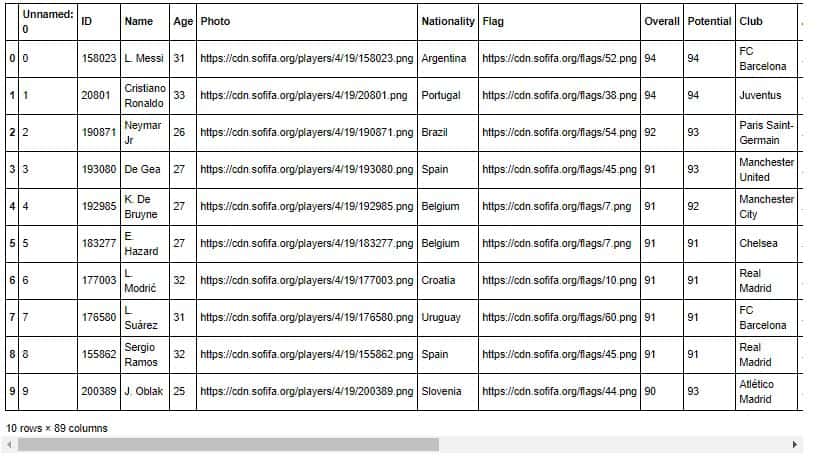

df.head(10) # having a look at the dataset, first 10 rows
df.head(10) # having a look at the dataset, first 10 rows
df.shape # checking the number of rows and columns in the dataset

(18207, 89)

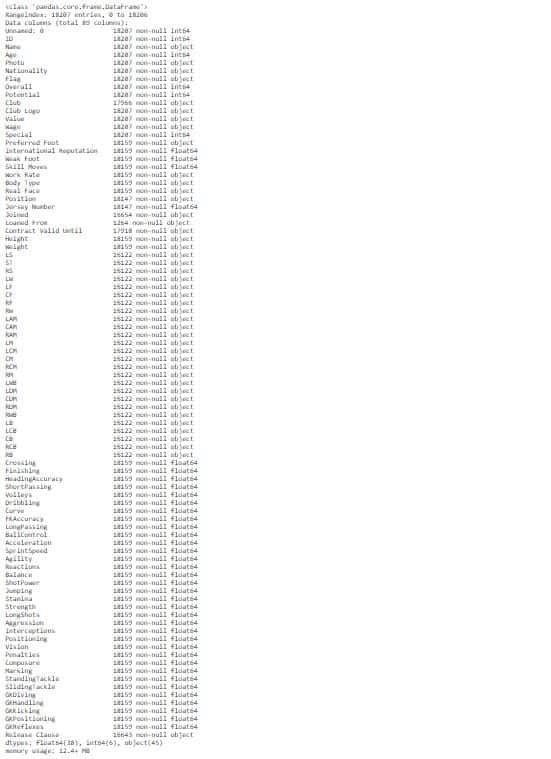

df.info() #Printing a concise summary of the DataFrame.
df.isnull().sum() # checking the count of the missing values in each column

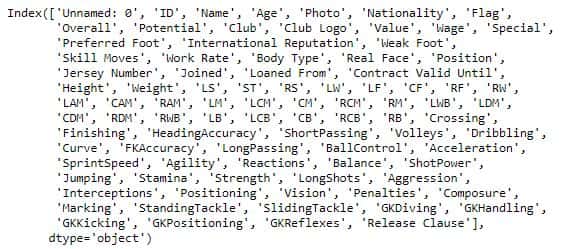

df.columns # listing the columns

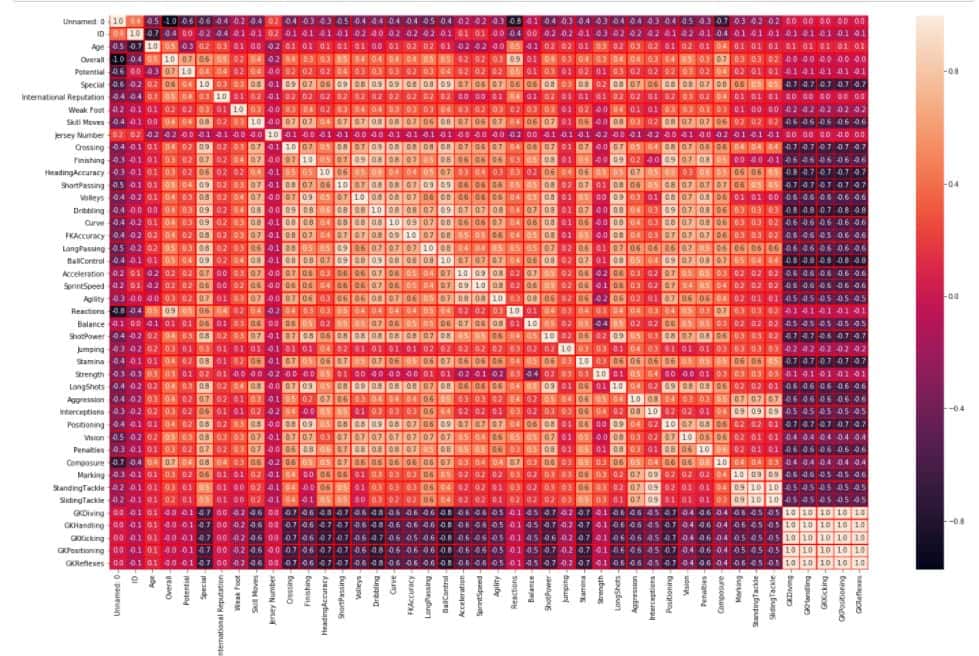

# Plotting the Heatmap of the columns using correlation matrix f,ax = plt.subplots(figsize=(25, 15)) sns.heatmap(df.corr(), annot=True, linewidths=0.5,linecolor="red", fmt= '.1f',ax=ax) plt.show()

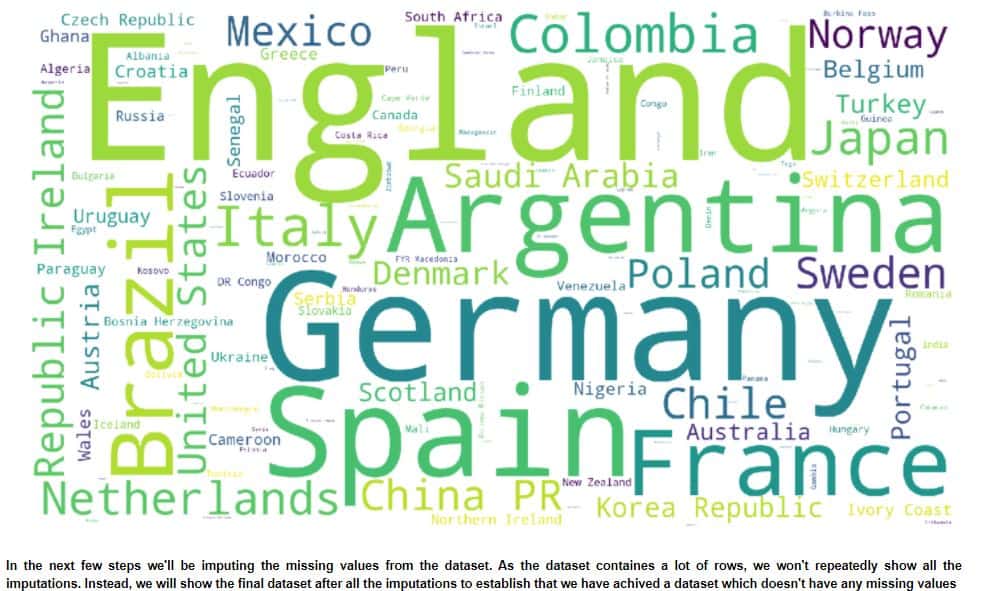

#Nationality Text Size = Nationality Player Count

# Plotiing the wordcloud for the Nationalit column plt.subplots(figsize=(25,15)) wordcloud = WordCloud( background_color='white', width=1920, height=1080 ).generate(" ".join(df.Nationality)) plt.imshow(wordcloud) plt.axis('off') plt.savefig('graph.png') plt.show()
#Imputing the missing values for the columns Club and Position
df['Club'].fillna('No Club', inplace = True)
df['Position'].fillna('ST', inplace = True)

# selecting columns to impute the missing values by mean
to_impute_by_mean = df.loc[:, ['Crossing', 'Finishing', 'HeadingAccuracy',
                                 'ShortPassing', 'Volleys', 'Dribbling', 'Curve', 'FKAccuracy',
                                 'LongPassing', 'BallControl', 'Acceleration', 'SprintSpeed',
                                 'Agility', 'Reactions', 'Balance', 'ShotPower', 'Jumping',
                                 'Stamina', 'Strength', 'LongShots', 'Aggression', 'Interceptions',
                                 'Positioning', 'Vision', 'Penalties', 'Composure', 'Marking',
                                 'StandingTackle', 'SlidingTackle', 'GKDiving', 'GKHandling',
                                 'GKKicking', 'GKPositioning', 'GKReflexes']]

# replacing the missing values with mean for i in to_impute_by_mean.columns: df[i].fillna(df[i].mean(), inplace = True)
'''These are categorical variables and will be imputed by mode.'''
to_impute_by_mode = df.loc[:, ['Body Type','International Reputation', 'Height', 'Weight', 'Preferred Foot','Jersey Number']]
for i in to_impute_by_mode.columns:
    df[i].fillna(df[i].mode()[0], inplace = True)
'''The following variables are either discrete numerical or continuous numerical variables.So the will be imputed by median.'''
to_impute_by_median = df.loc[:, ['Weak Foot', 'Skill Moves', ]]
for i in to_impute_by_median.columns:
    df[i].fillna(df[i].median(), inplace = True)

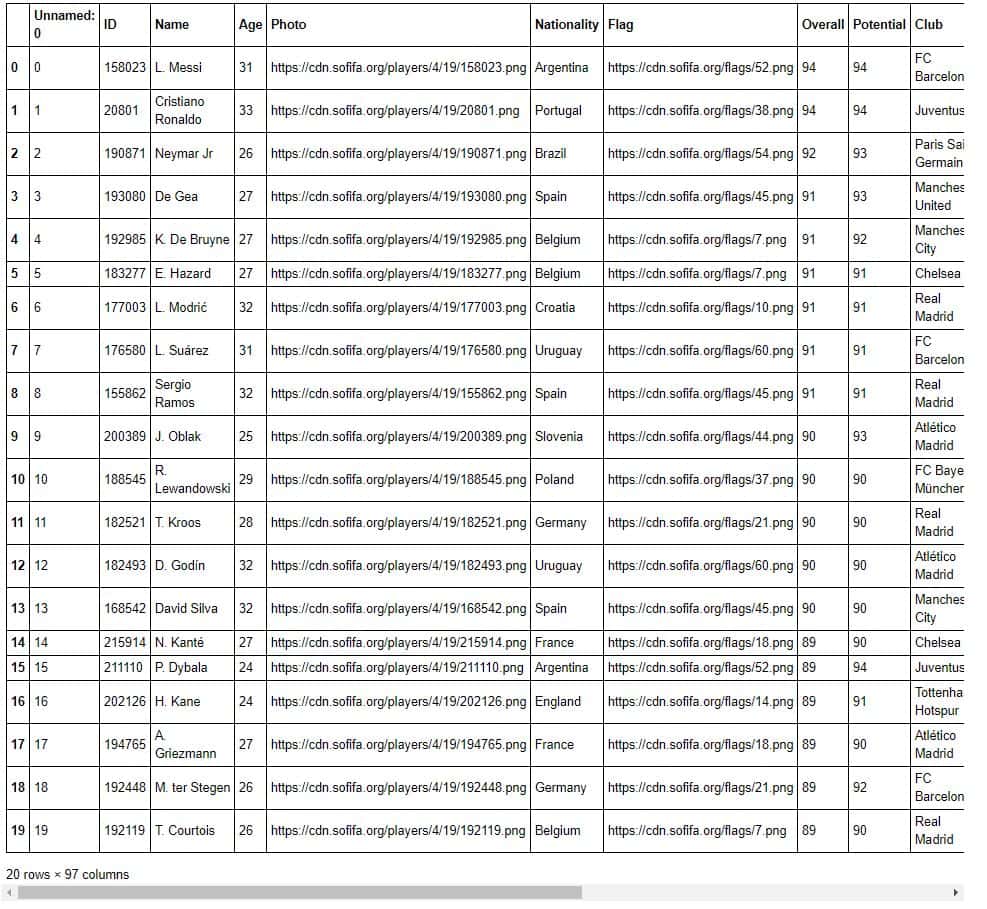

df.head(20)

'''Columns remaining to be imputed''' df.columns[df.isna().any()]

df.fillna(0, inplace = True) # Filling the remaining missing values with zero df.head(20)

# functions to get the rounded values from different columns def defending(data): return int(round((data[['Marking', 'StandingTackle', 'SlidingTackle']].mean()).mean())) def general(data): return int(round((data[['HeadingAccuracy', 'Dribbling', 'Curve', 'BallControl']].mean()).mean())) def mental(data): return int(round((data[['Aggression', 'Interceptions', 'Positioning', 'Vision','Composure']].mean()).mean())) def passing(data): return int(round((data[['Crossing', 'ShortPassing', 'LongPassing']].mean()).mean())) def mobility(data): return int(round((data[['Acceleration', 'SprintSpeed', 'Agility','Reactions']].mean()).mean())) def power(data): return int(round((data[['Balance', 'Jumping', 'Stamina', 'Strength']].mean()).mean())) def rating(data): return int(round((data[['Potential', 'Overall']].mean()).mean())) def shooting(data): return int(round((data[['Finishing', 'Volleys', 'FKAccuracy', 'ShotPower','LongShots', 'Penalties']].mean()).mean()))
# renaming a column
df.rename(columns={'Club Logo':'Club_Logo'}, inplace=True)

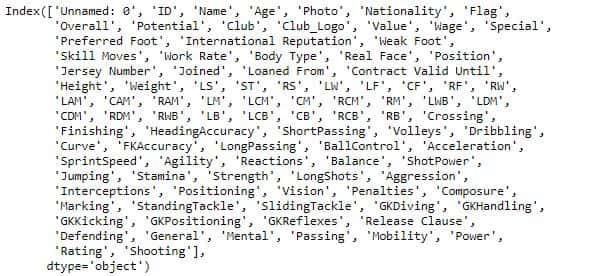

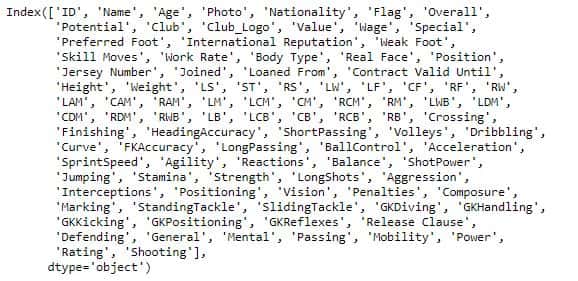

df.columns

# adding these categories to the data df['Defending'] = df.apply(defending, axis = 1) df['General'] = df.apply(general, axis = 1) df['Mental'] = df.apply(mental, axis = 1) df['Passing'] = df.apply(passing, axis = 1) df['Mobility'] = df.apply(mobility, axis = 1) df['Power'] = df.apply(power, axis = 1) df['Rating'] = df.apply(rating, axis = 1) df['Shooting'] = df.apply(shooting, axis = 1)

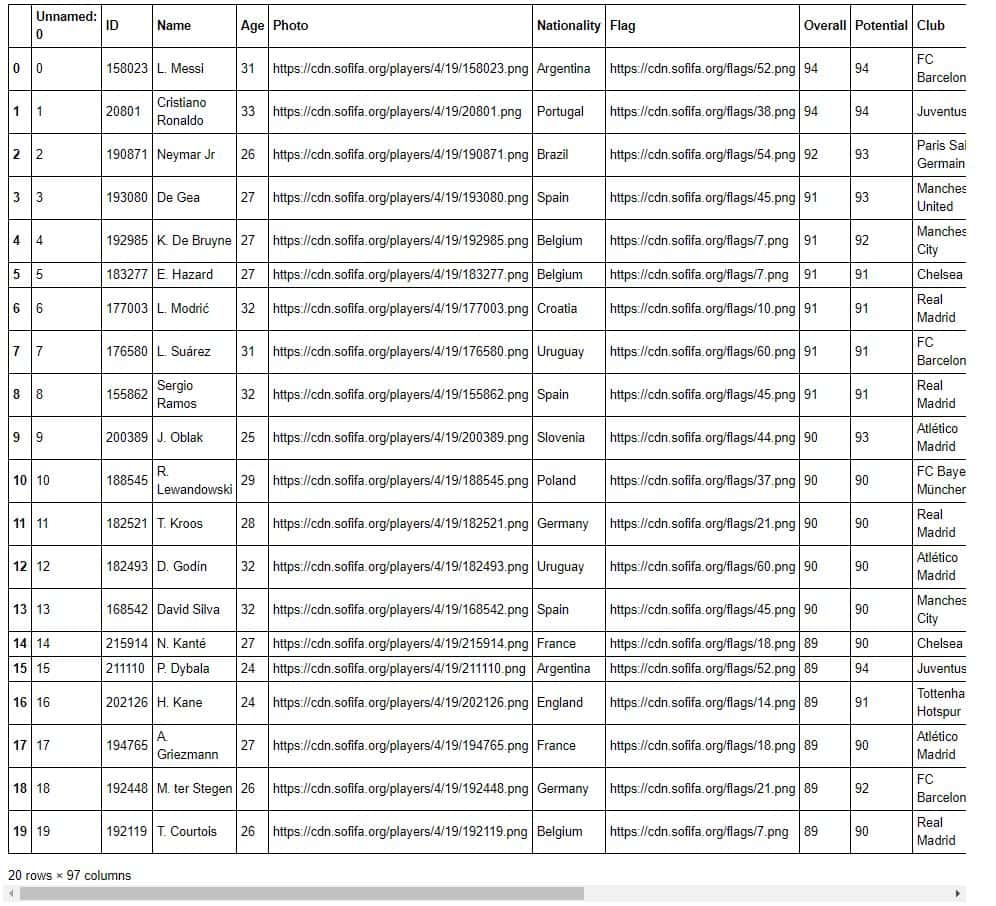

# dataset after transformation
df.head(20)

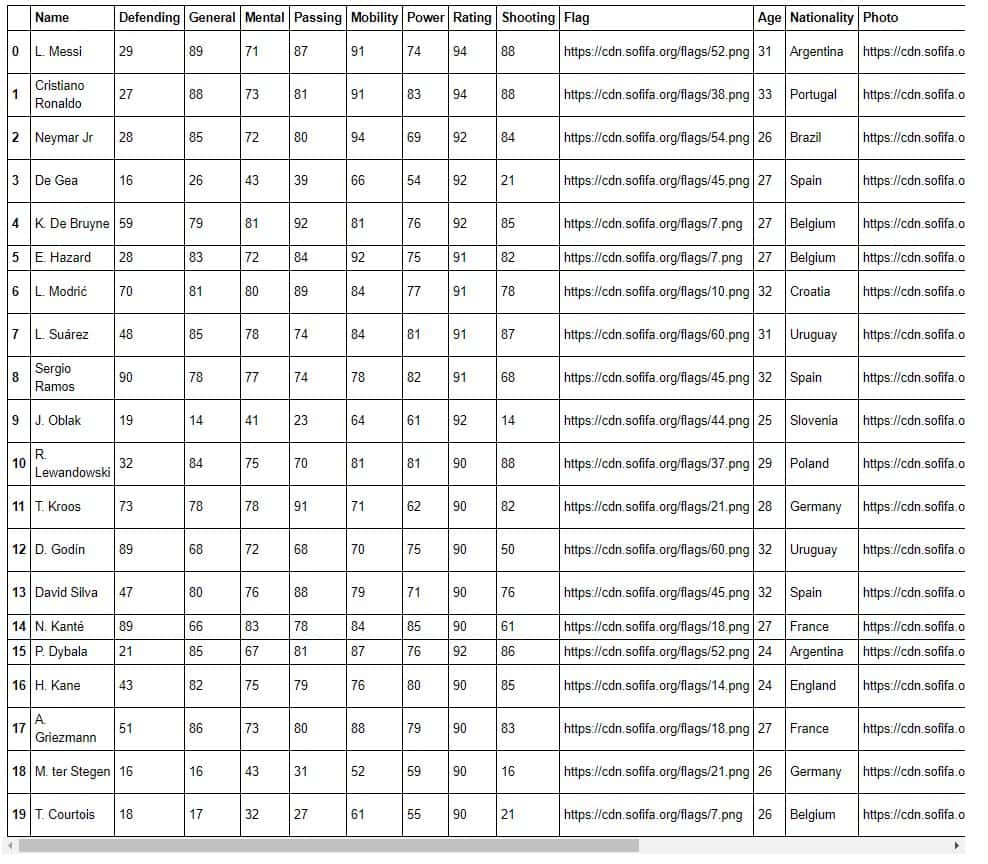

# creating the players dataset
players = df[['Name','Defending','General','Mental','Passing',
                'Mobility','Power','Rating','Shooting','Flag','Age',
                'Nationality', 'Photo', 'Club_Logo', 'Club']]

players.head(20)

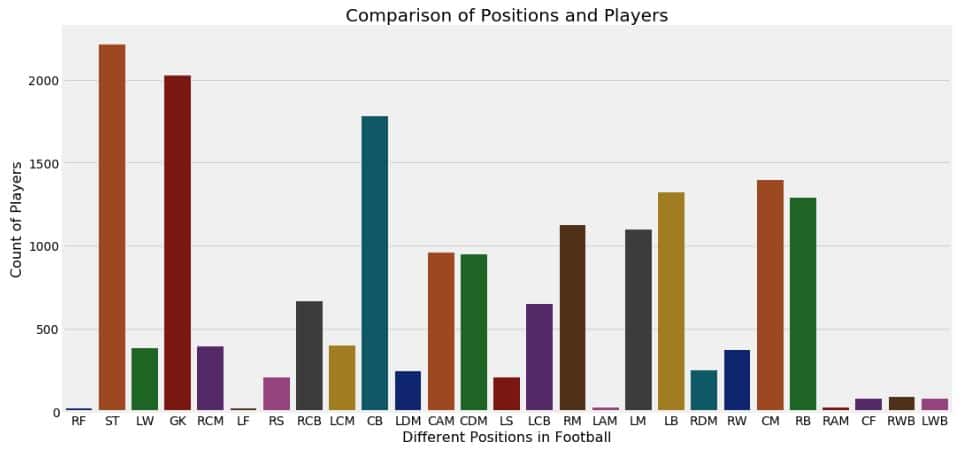

# different positions acquired by the players

plt.figure(figsize = (18, 8))
plt.style.use('fivethirtyeight')
ax = sns.countplot('Position', data = df, palette = 'dark')
ax.set_xlabel(xlabel = 'Different Positions in Football', fontsize = 16)
ax.set_ylabel(ylabel = 'Count of Players', fontsize = 16)
ax.set_title(label = 'Comparison of Positions and Players', fontsize = 20)
plt.show()

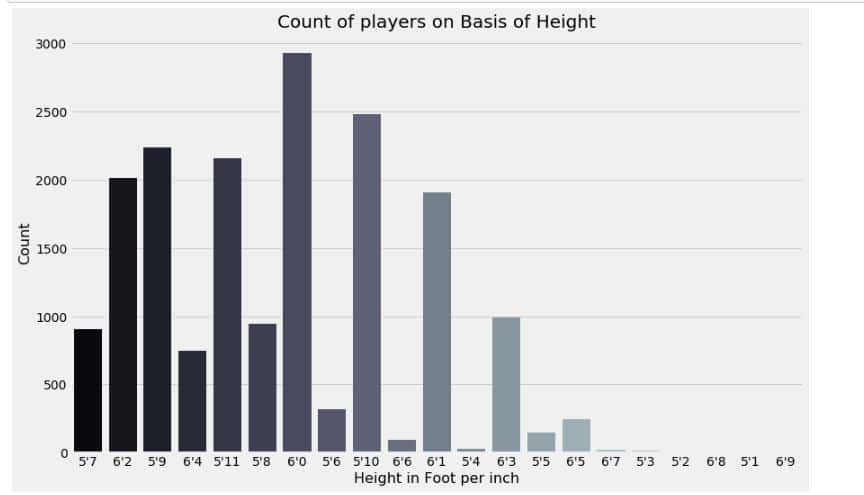

# plotting coun of players based on their heights
plt.figure(figsize = (13, 8))
ax = sns.countplot(x = 'Height', data = df, palette = 'bone')
ax.set_title(label = 'Count of players on Basis of Height', fontsize = 20)
ax.set_xlabel(xlabel = 'Height in Foot per inch', fontsize = 16)
ax.set_ylabel(ylabel = 'Count', fontsize = 16)
plt.show()

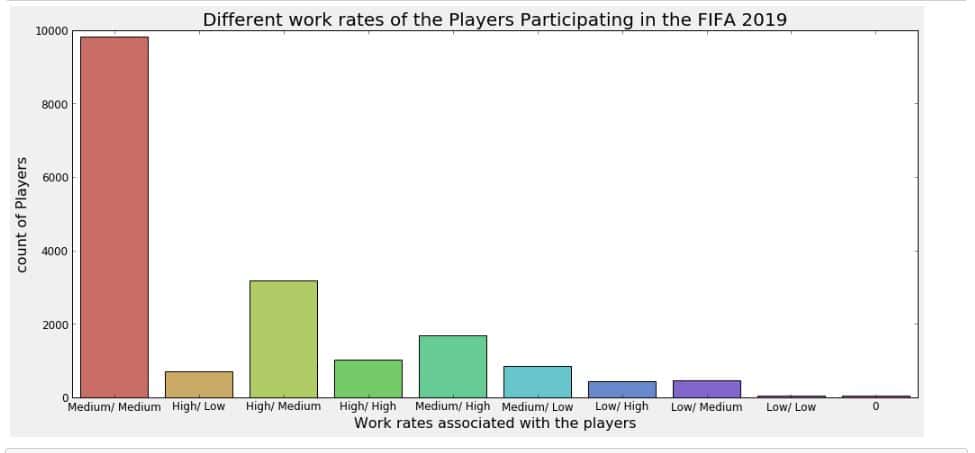

# To show Different Work rate of the players participating in the FIFA 2019 plt.figure(figsize = (15, 7)) plt.style.use('_classic_test') sns.countplot(x = 'Work Rate', data = df, palette = 'hls') plt.title('Different work rates of the Players Participating in the FIFA 2019', fontsize = 20) plt.xlabel('Work rates associated with the players', fontsize = 16) plt.ylabel('count of Players', fontsize = 16) plt.show()

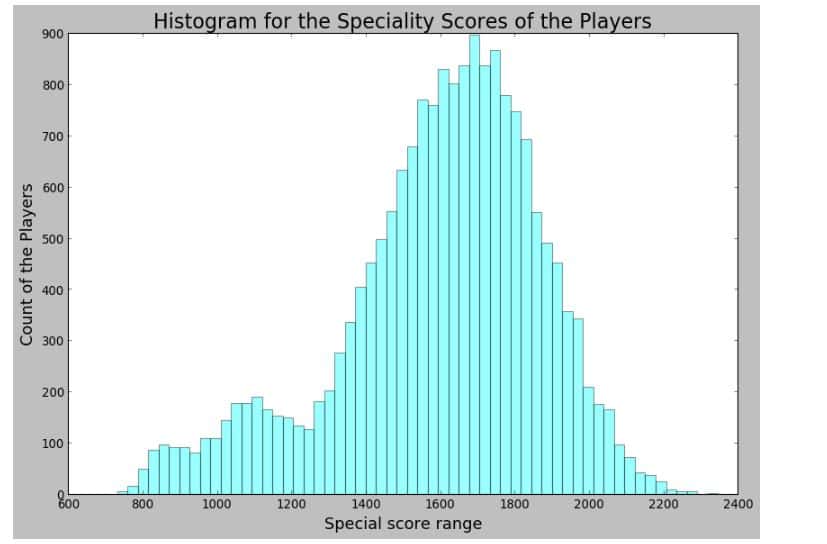

x = df.Special plt.figure(figsize = (12, 8)) plt.style.use('tableau-colorblind10') ax = sns.distplot(x, bins = 58, kde = False, color = 'cyan') ax.set_xlabel(xlabel = 'Special score range', fontsize = 16) ax.set_ylabel(ylabel = 'Count of the Players',fontsize = 16) ax.set_title(label = 'Histogram for the Speciality Scores of the Players', fontsize = 20) plt.show()

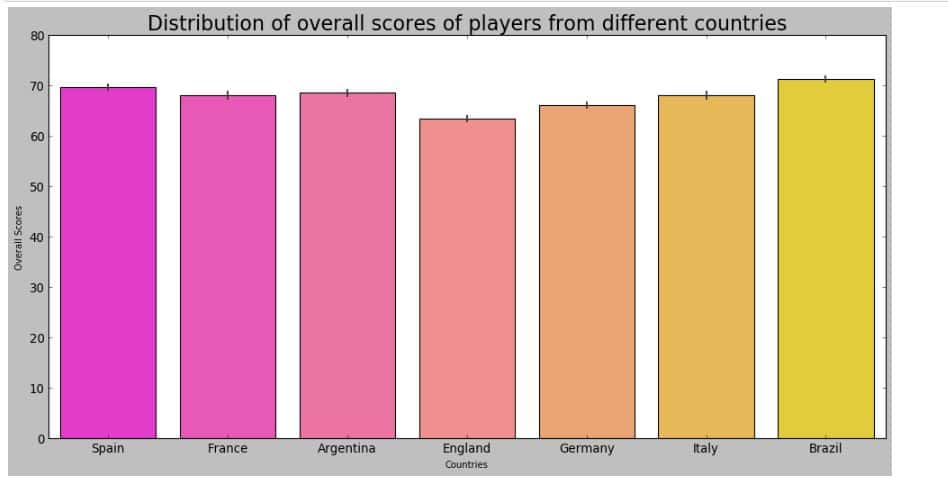

# Every Nations' Player and their overall scores

some_countries = ('England', 'Germany', 'Spain', 'Argentina', 'France', 'Brazil', 'Italy', 'Columbia') # defining a tuple consisting of country names
data_countries = df.loc[df['Nationality'].isin(some_countries) & df['Overall']] # extracting the overall data of the countries selected in the line above
data_countries.head()

plt.rcParams['figure.figsize'] = (15, 7) ax = sns.barplot(x = data_countries['Nationality'], y = data_countries['Overall'], palette = 'spring') # creating a bargraph ax.set_xlabel(xlabel = 'Countries', fontsize = 9) ax.set_ylabel(ylabel = 'Overall Scores', fontsize = 9) ax.set_title(label = 'Distribution of overall scores of players from different countries', fontsize = 20) plt.show()
df['Club'].value_counts().head(10) # finding the number of players in each club
data = df.copy() # creating a copy dataset
# for visualizations
import matplotlib.pyplot as plt
import seaborn as sns
plt.style.use('fivethirtyeight')
sns.set(style="ticks")
some_clubs = ('CD Leganés', 'Southampton', 'RC Celta', 'Empoli', 'Fortuna Düsseldorf', 'Manchestar City',
             'Tottenham Hotspur', 'FC Barcelona', 'Valencia CF', 'Chelsea', 'Real Madrid') # creating a tuple of club names

data_clubs = data.loc[data['Club'].isin(some_clubs) & data['Overall']] # extracting the overall data of the clubs selected in the line above

data_clubs.head()

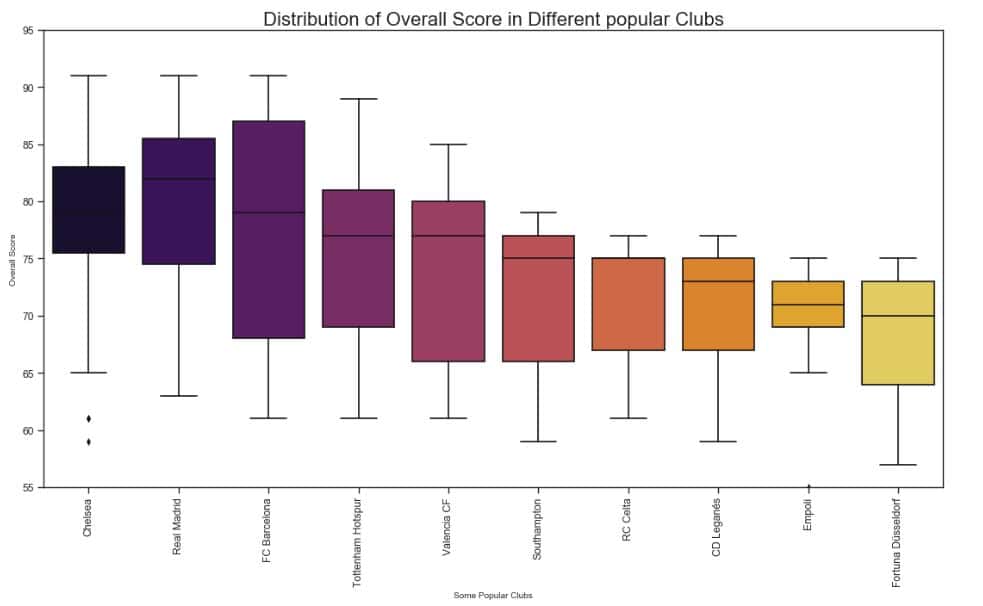

plt.rcParams['figure.figsize'] = (15, 8)
ax = sns.boxplot(x = data_clubs['Club'], y = data_clubs['Overall'], palette = 'inferno') # creating a boxplot
ax.set_xlabel(xlabel = 'Some Popular Clubs', fontsize = 9)
ax.set_ylabel(ylabel = 'Overall Score', fontsize = 9)
ax.set_title(label = 'Distribution of Overall Score in Different popular Clubs', fontsize = 20)
plt.xticks(rotation = 90)
plt.show()

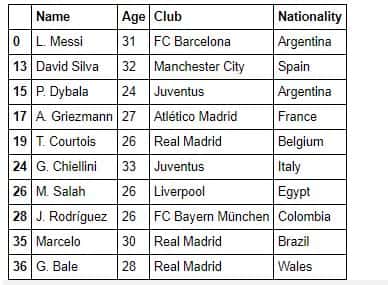

# finding out the top 10 left footed footballers

left = data[data['Preferred Foot'] == 'Left'][['Name', 'Age', 'Club', 'Nationality']].head(10)
left

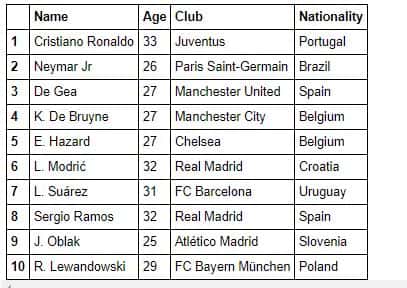

# finding out the top 10 Right footed footballers right = data[data['Preferred Foot'] == 'Right'][['Name', 'Age', 'Club', 'Nationality']].head(10) right

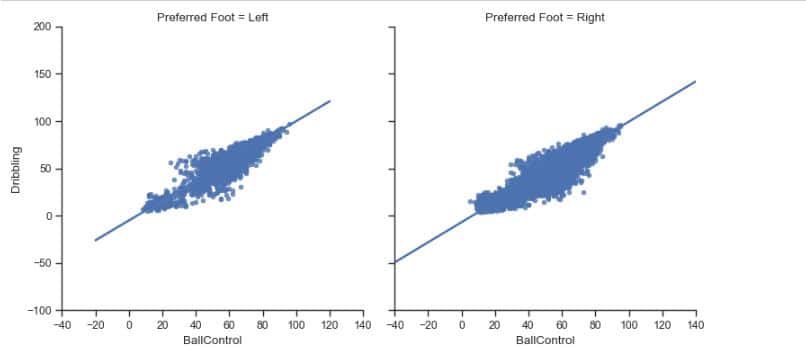

# comparing the performance of left-footed and right-footed footballers # ballcontrol vs dribbing sns.lmplot(x = 'BallControl', y = 'Dribbling', data = data, col = 'Preferred Foot') plt.show()

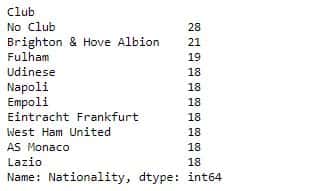

data.groupby(data['Club'])['Nationality'].nunique().sort_values(ascending = False).head(10) # checking the clubs where players from the most number of nations play

data.groupby(data['Club'])['Nationality'].nunique().sort_values(ascending = True).head(10) # checking the clubs where players from the least number of nations play

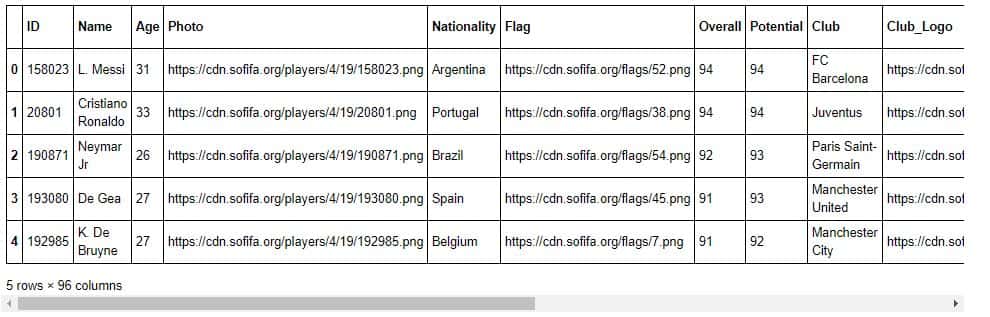

df.head()

df.drop(['Unnamed: 0'],axis=1,inplace=True) # dropping the unnamed column
df.head() # dataset after dropping column
#Player with maximum Potential and Overall Performance
player = str(df.loc[df['Potential'].idxmax()][1])
print('Maximum Potential : '+str(df.loc[df['Potential'].idxmax()][1]))
print('Maximum Overall Perforamnce : '+str(df.loc[df['Overall'].idxmax()][1]))

Maximum Potential : K. Mbappé

Maximum Overall Perforamnce : L. Messi

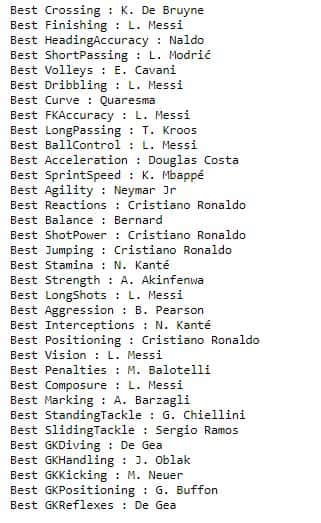

# finding the best players for each performance criteria pr_cols=['Crossing', 'Finishing', 'HeadingAccuracy', 'ShortPassing', 'Volleys', 'Dribbling', 'Curve', 'FKAccuracy', 'LongPassing', 'BallControl', 'Acceleration', 'SprintSpeed', 'Agility', 'Reactions', 'Balance', 'ShotPower', 'Jumping', 'Stamina', 'Strength', 'LongShots', 'Aggression', 'Interceptions', 'Positioning', 'Vision', 'Penalties', 'Composure', 'Marking', 'StandingTackle', 'SlidingTackle', 'GKDiving', 'GKHandling', 'GKKicking', 'GKPositioning', 'GKReflexes'] i=0 while i < len(pr_cols): print('Best {0} : {1}'.format(pr_cols[i],df.loc[df[pr_cols[i]].idxmax()][1])) i += 1

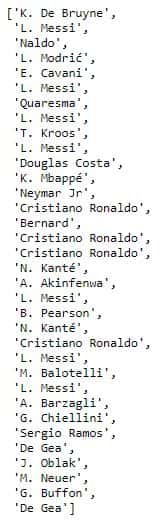

# creating a list of best players in each of the pr_cols criteria i=0 best = [] while i < len(pr_cols): best.append(df.loc[df[pr_cols[i]].idxmax()][1]) i +=1
best

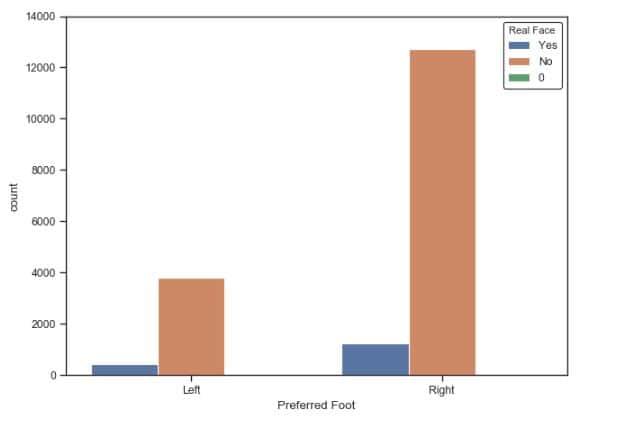

# Plot to show the preferred foot choice of different players f, ax = plt.subplots(figsize=(8, 6)) sns.countplot(x="Preferred Foot", hue="Real Face", data=df) plt.show()
df.loc[df['Potential'].idxmax()][1] # Finding the player with the maximum potential

'K. Mbappé'


# showing the name of the players which occurs the most number of times from the first 20 names plt.subplots(figsize=(25,15)) wordcloud = WordCloud( background_color='black', width=1920, height=1080 ).generate(" ".join(df.Name[0:20])) plt.imshow(wordcloud) plt.axis('off') plt.savefig('players.png') plt.show()
df.columns # all the columns in the dataset

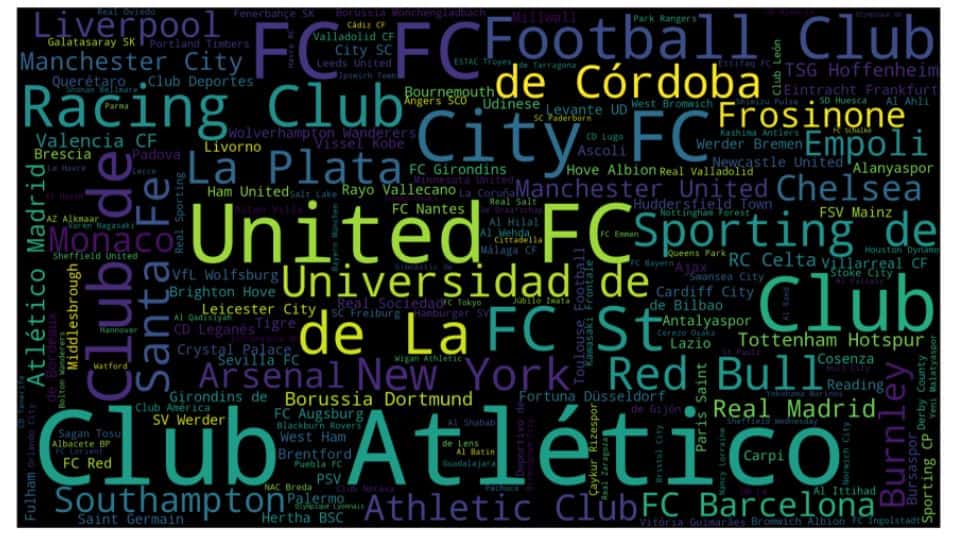

# checking which clubs have been mentioned the most plt.subplots(figsize=(25,15)) wordcloud = WordCloud( background_color='black', width=1920, height=1080 ).generate(" ".join(df.Club)) plt.imshow(wordcloud) plt.axis('off') plt.savefig('players.png') plt.show()
# showing the name of the players which occurs the most number of times(left join)
plt.subplots(figsize=(25,15))
wordcloud = WordCloud(
                          background_color='black',
                          width=1920,
                          height=1080
                         ).generate(" ".join(left.Name))
plt.imshow(wordcloud)
plt.axis('off')
plt.savefig('players.png')
plt.show()

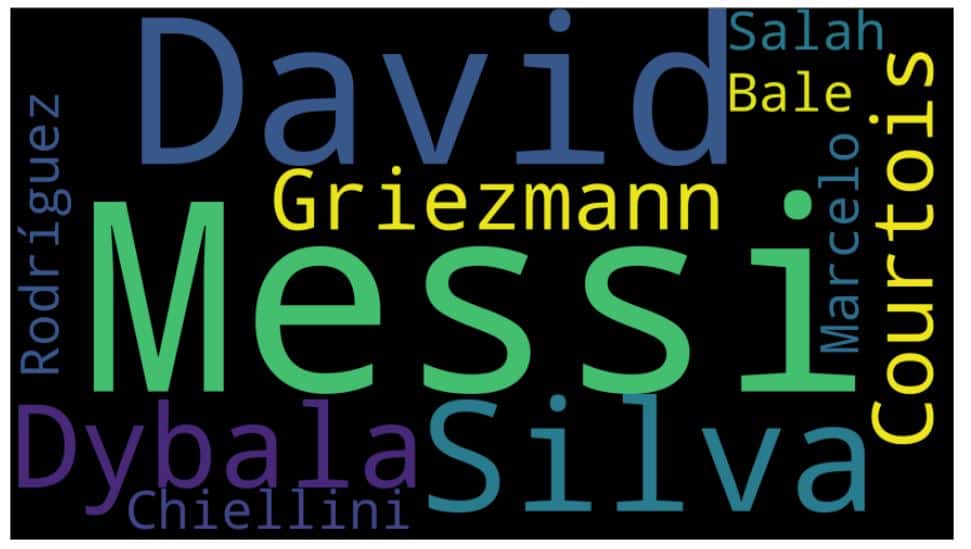

# showing the name of the players which occurs the most number of times(right join)
plt.subplots(figsize=(25,15))
wordcloud = WordCloud(
                          background_color='white',
                          width=1920,
                          height=1080
                         ).generate(" ".join(right.Name))
plt.imshow(wordcloud)
plt.axis('off')
plt.savefig('players.png')
plt.show()

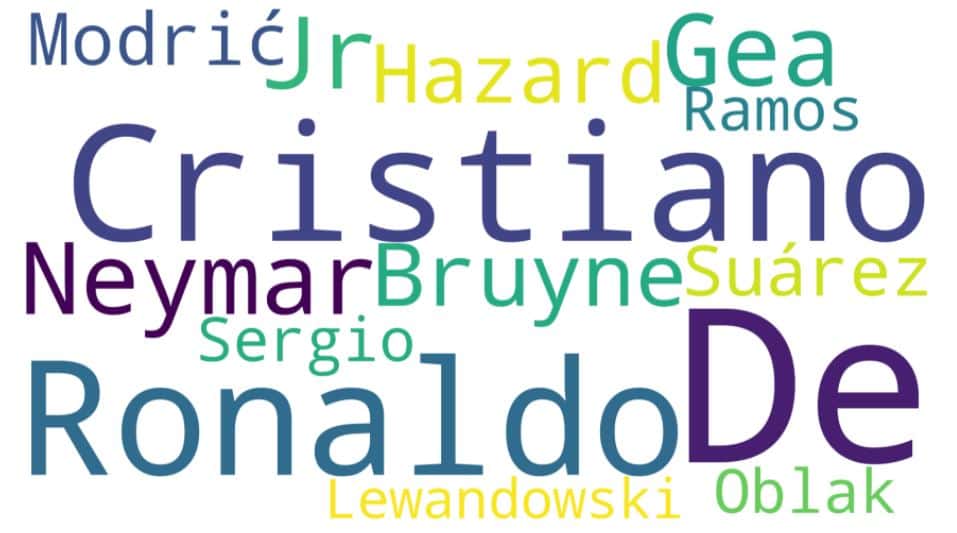

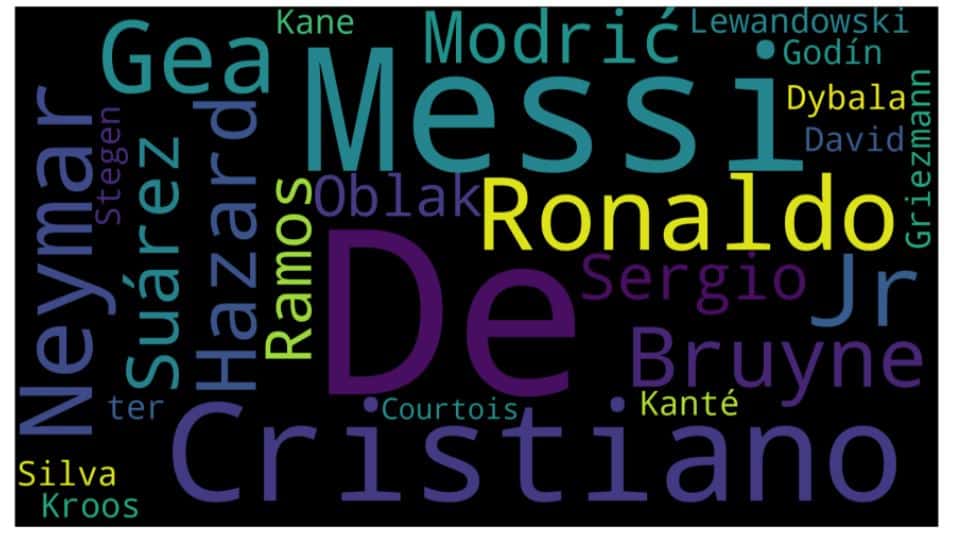

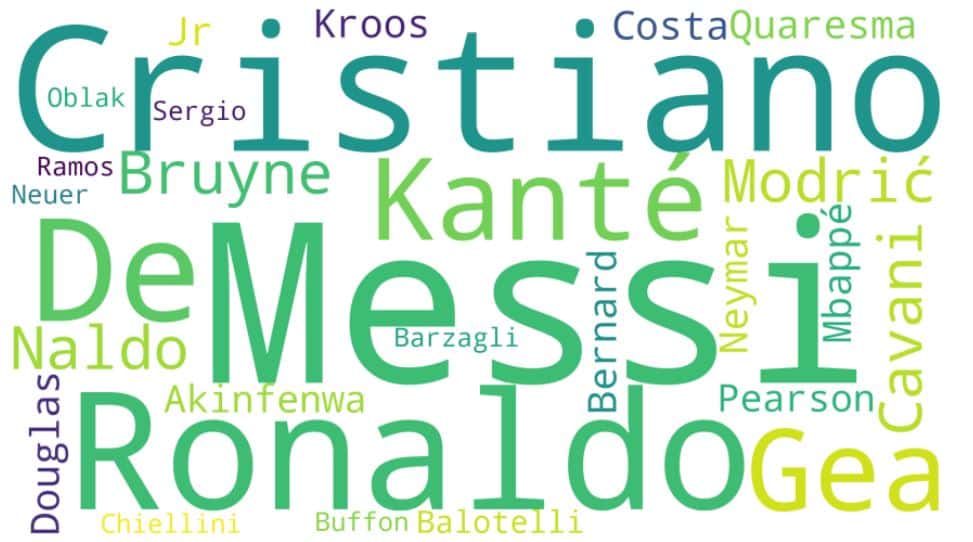

# Checking which player has been mentioned the most in the 'best' list that we have prepared
plt.subplots(figsize=(25,15))
wordcloud = WordCloud(
                          background_color='white',
                          width=1920,
                          height=1080
                         ).generate(" ".join(best))
plt.imshow(wordcloud)
plt.axis('off')
plt.savefig('players.png')
plt.show()
import requests
import random
from math import pi

import matplotlib.image as mpimg
from matplotlib.offsetbox import (OffsetImage,AnnotationBbox)

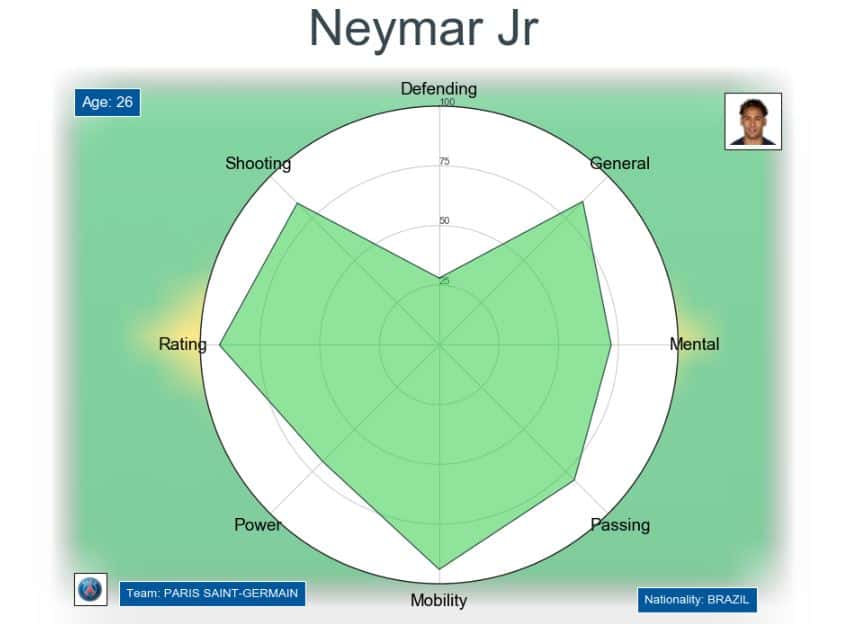

# defining a method to show the details of a player
def details(row, title, image, age, nationality, photo, logo, club):

    flag_image = "img_flag.jpg"
    player_image = "img_player.jpg"
    logo_image = "img_club_logo.jpg"

    # obtaining the player image, flag image and logo image
    img_flag = requests.get(image).content
    with open(flag_image, 'wb') as handler:
        handler.write(img_flag)

    player_img = requests.get(photo).content
    with open(player_image, 'wb') as handler:
        handler.write(player_img)

    logo_img = requests.get(logo).content
    with open(logo_image, 'wb') as handler:
        handler.write(logo_img)

    # Defining the colour schemes
    r = lambda: random.randint(0,255)
    colorRandom = '#%02X%02X%02X' % (r(),r(),r())

    if colorRandom == '#ffffff':colorRandom = '#a5d6a7' # if random colour  is white, assign a different colour

    basic_color = '#37474f'
    color_annotate = '#01579b'

    img = mpimg.imread(flag_image)

    plt.figure(figsize=(15,8))
    categories=list(players)[1:]
    coulumnDontUseGraph = ['Flag', 'Age', 'Nationality', 'Photo', 'Logo', 'Club']
    N = len(categories) - len(coulumnDontUseGraph)

    # adjusting the angles to show different aspects in the graph
    angles = [n / float(N) * 2 * pi for n in range(N)]
    angles += angles[:1]

    ax = plt.subplot(111, projection='polar') # sepcifying a  polar graph type
    ax.set_theta_offset(pi / 2) # set the offset in radians
    ax.set_theta_direction(-1) #the angle increases in the clockwise direction
    plt.xticks(angles[:-1], categories, color= 'black', size=17)
    ax.set_rlabel_position(0)
    plt.yticks([25,50,75,100], ["25","50","75","100"], color= basic_color, size= 10)
    plt.ylim(0,100)

    #creating the list of values which are not in (image, age, nationality, photo, logo, club) to show in the graph
    values = players.loc[row].drop('Name').values.flatten().tolist()
    valuesDontUseGraph = [image, age, nationality, photo, logo, club]
    values = [e for e in values if e not in (valuesDontUseGraph)]
    values += values[:1]

    # customizing the graph attributes
    ax.plot(angles, values, color= basic_color, linewidth=1, linestyle='solid')
    ax.fill(angles, values, color= colorRandom, alpha=0.5)
    axes_coords = [0, 0, 1, 1]
    ax_image = plt.gcf().add_axes(axes_coords,zorder= -1)
    ax_image.imshow(img,alpha=0.5)
    ax_image.axis('off')

    # placeholders for showing nationality, age and team name
    ax.annotate('Nationality: ' + nationality.upper(), xy=(10,10), xytext=(103, 138),
                fontsize= 12,
                color = 'white',
                bbox={'facecolor': color_annotate, 'pad': 7})

    ax.annotate('Age: ' + str(age), xy=(10,10), xytext=(43, 180),
                fontsize= 15,
                color = 'white',
                bbox={'facecolor': color_annotate, 'pad': 7})

    ax.annotate('Team: ' + club.upper(), xy=(10,10), xytext=(92, 168),
                fontsize= 12,
                color = 'white',
                bbox={'facecolor': color_annotate, 'pad': 7})

    # specifying the location for showing the image of player
    arr_img_player = plt.imread(player_image, format='jpg')
    imagebox_player = OffsetImage(arr_img_player)
    imagebox_player.image.axes = ax
    abPlayer = AnnotationBbox(imagebox_player, (0.5, 0.7),
                        xybox=(313, 223),
                        xycoords='data',
                        boxcoords="offset points"
                        )
    # specifying the location for showing the logo
    arr_img_logo = plt.imread(logo_image, format='jpg')

    imagebox_logo = OffsetImage(arr_img_logo)
    imagebox_logo.image.axes = ax
    abLogo = AnnotationBbox(imagebox_logo, (0.5, 0.7),
                        xybox=(-350, -246),
                        xycoords='data',
                        boxcoords="offset points"
                        )

    ax.add_artist(abPlayer)
    ax.add_artist(abLogo)

    plt.title(title, size=50, color= basic_color)

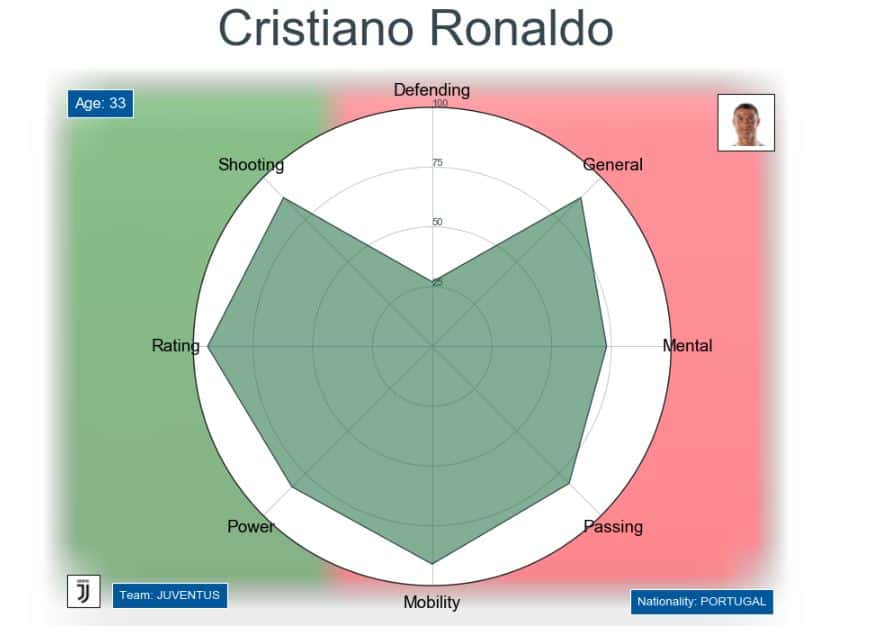

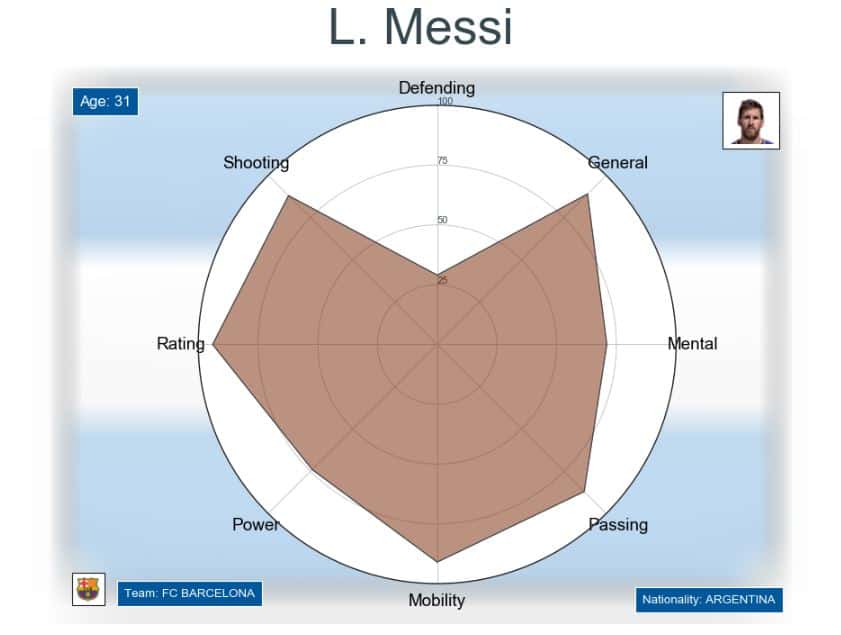

# defining a method to show the leading performers def graphPolar(id = 0): if 0 <= id < len(data.ID): details(row = players.index[id], title = players['Name'][id], age = players['Age'][id], photo = players['Photo'][id], nationality = players['Nationality'][id], image = players['Flag'][id], logo = players['Club_Logo'][id], club = players['Club'][id]) else: print('The base has 17917 players. You can put positive numbers from 0 to 17917')
graphPolar(0)
graphPolar(1)
graphPolar(2)

Reference: For dataset visit:https://github.com/iNeuronai/EDACollection/tree/master/FIFA

##End of the Notebook##
